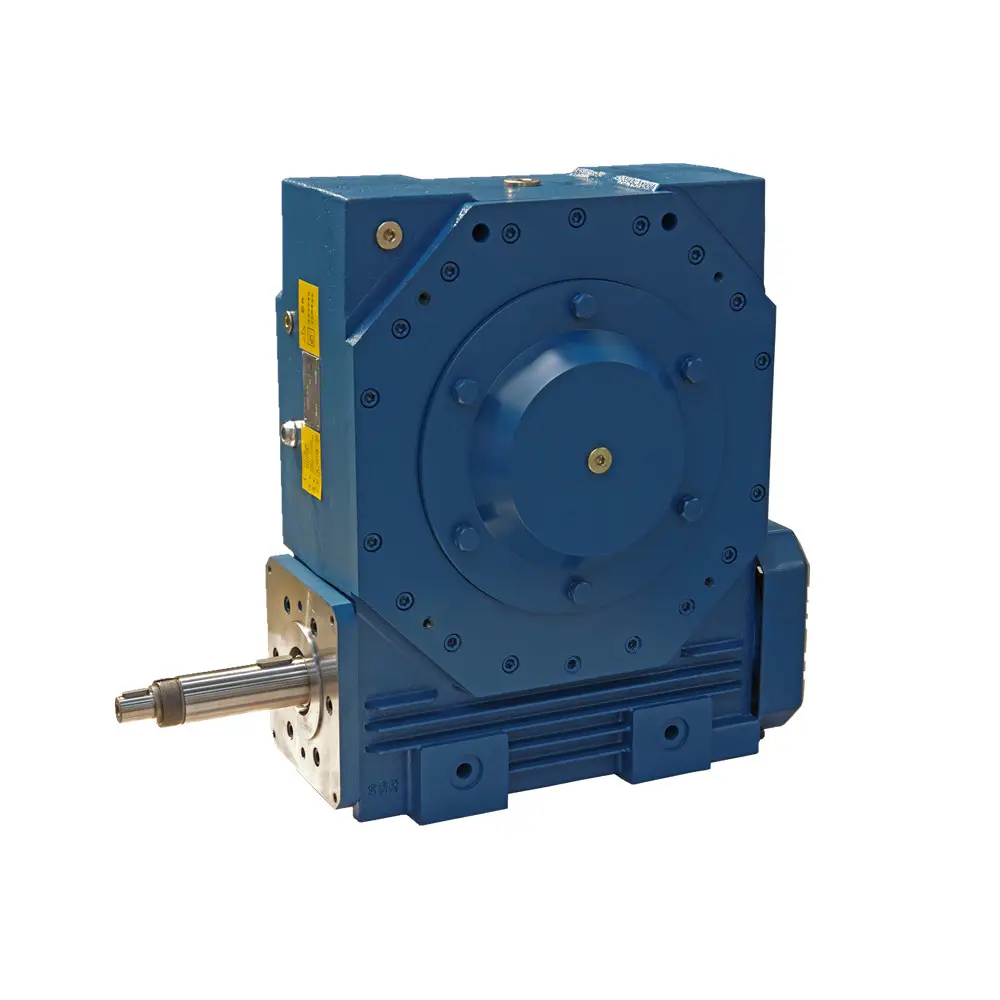

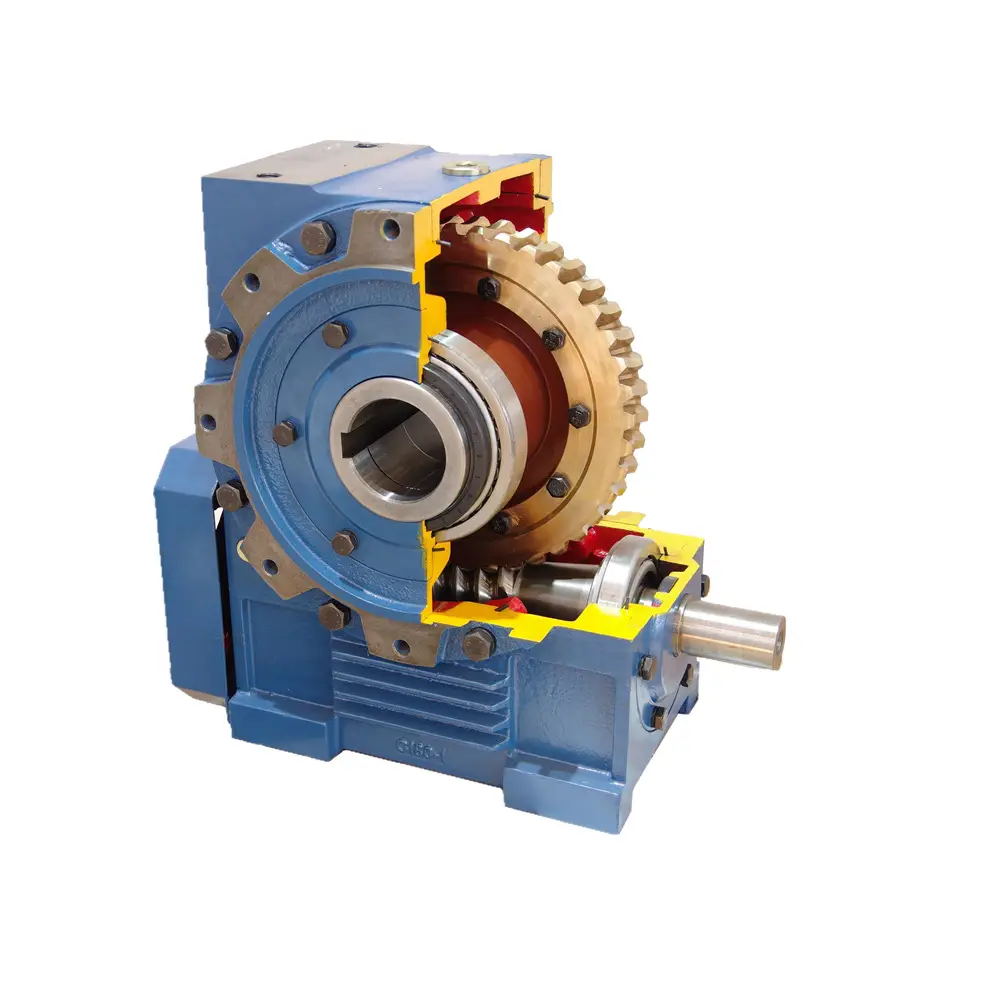

C Series double-enveloping worm gear reducer

Basic parameters of C Series double-enveloping worm gear reducer
	Single-stage type	Two-stage type
Center distance	100、125、140、160、180、200、225、250、280、315、355、400、450、500
Transmission speed ratio	i=10.25～63	i=105～3969
Output torque	650～70000 N.m
Input power	1.1～585 kW	1.1～110 kW
Installation form	Base installation, end face installation of the machine base, flange installation, shaft hole with torque arm
Input terminal form	Worm top mounting, worm bottom mounting, IEC motor flange, cylindrical shaft, splined shaft, brake, customized
Input rotational speed	≤2000 r/min
Output terminal form	Cylindrical shafts, splined shafts, splined holes, cylindrical shafts, cylindrical hole expansion sleeves, custom-made
